Ultra-Precision Printing

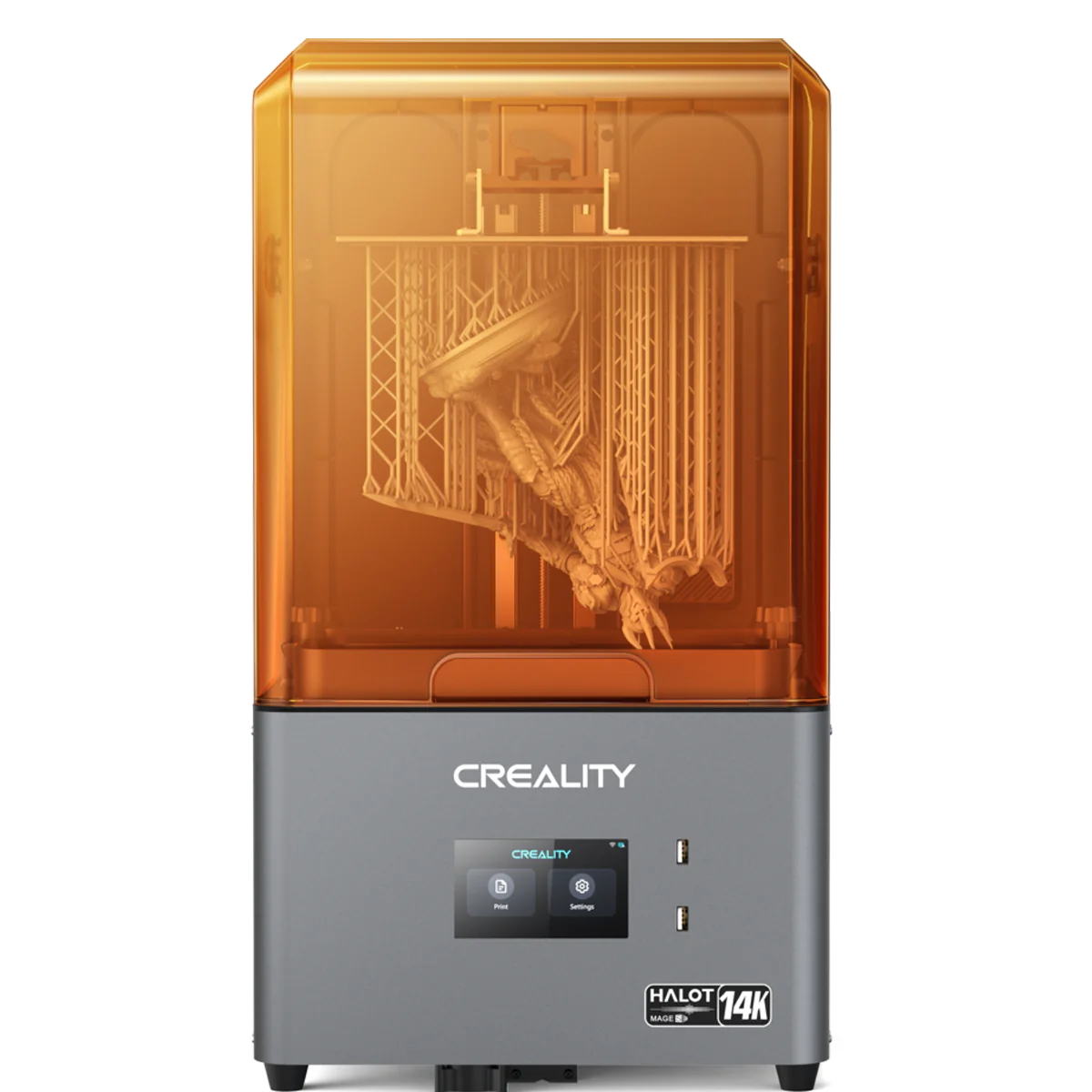

Experience the epitome of 3D printing precision with the Creality Halot Mage 14K LCD Resin Printer. Designed for ultra-precision, it features an impressive 14K resolution on a 10.1″ LCD screen, ensuring accurate rendering of shapes, textures, and fabrics. The advanced integral light source 3.0 provides uniform UV light, resulting in consistent curing of each resin layer for precise shapes and dimensional accuracy ranging from 0.02-0.09mm.
Speed and Quality in Harmony
Discover the efficiency of DynaX+ Ultra-Fast Mode, capable of creating a 15cm tall model in just one hour while maintaining exceptional print quality. The sturdy “Dynax” motion system minimizes layer lines with its agile and stable performance, supported by dual linear rails and a powerful closed-loop motor that eliminates vibrations and step loss.
Improved Build Plate and Levelling
The Halot Mage 14K’s CNC-machined aluminium alloy build plate features a laser-carved pattern for enhanced adhesion and easier model removal. Its 2.25x levelling tension with a non-slip adapter ensures secure leveling. The intelligent HALOT OS allows remote printing from your phone or PC, while the Creality Cloud enables direct downloads from your personal model library.
Enhanced Printing Environment
Enjoy a cleaner printing environment and reduced odor with the built-in smart air purifier, complete with an activated carbon filter and a vent hole for connecting an exhaust tube. Optional smart resin pump upgrades automate resin filling and withdrawal, streamlining the process for efficiency and cleanliness.
Comprehensive Accessories
The Halot Mage 14K comes with a range of powerful accessories, including a wash & cure machine for thorough cleaning and curing, the Nebula camera for real-time monitoring and time-lapse filming, and a selection of quality resins for high-precision prints. Elevate your 3D printing experience with the Creality Halot Mage 14K, where size and quality go hand in hand.
Connectivity and Software
For added convenience, the Halot Mage 14K offers.
Product Specifications
Printing Technology: LCD MSLA
File Transfer: USB Drive, RJ45 Ethernet Cable, WiFi
Build Volume: 223 x 126 x 230 mm (6462 cm³)
Release Film: High-speed “Pictor” Film / Regular FEP Film
Product Dimensions: 333 x 270 x 608 mm
Smart Resin Pump: Optional
Package Dimensions: 421 x 356 x 672 mm
Air Purifier: Yes
Net Weight: 13.13 kg
Noise Level: 49 dB (1m)
Gross Weight: 16.35 kg
Rated Power: 100 W
Printing Speed: ≤ 150 mm/h
Resin: 405 nm Resins
Layer Height: 0.05 – 0.2 mm
Slicing Software: HALOT BOX / CHITUBOX / Tango
LCD Screen: 10.1″ Mono LCD
Computer OS: Windows / Mac
LCD Resolution: 14K (13320 x 5120)
File Formats for Slicing: STL / OBJ
XY Resolution: 16.8 x 24.8 μm
Display Screen: 4.3″
Light Source: Integral Light Source 3.0
APP for Cloud Printing: Creality Cloud
Light Uniformity (%): ＞90%
Light Intensity: 3500 ± 10% μW/cm²
