Description

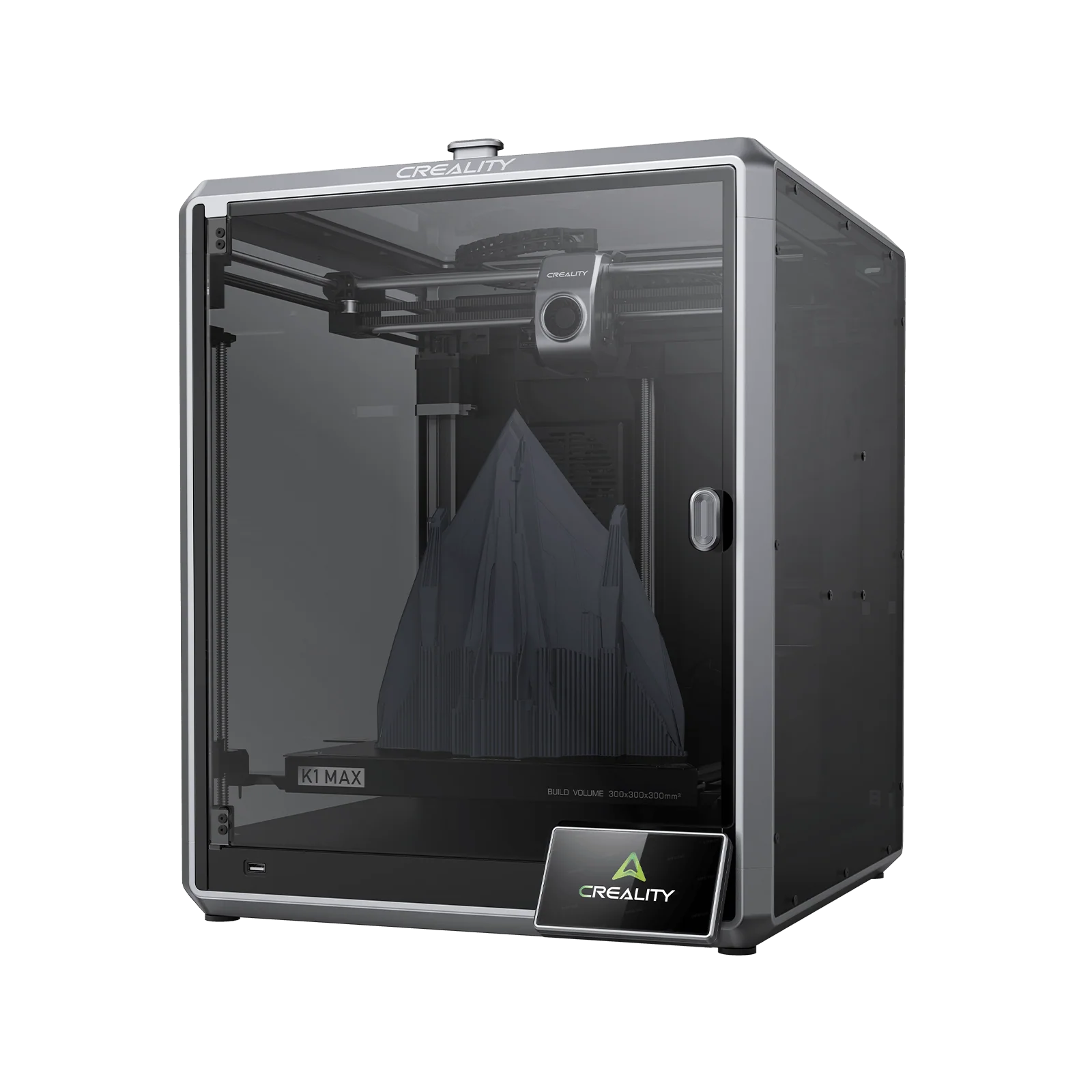

The Creality K1 Max 2025 3D Printer is the upgraded edition of Creality’s flagship large-format Core XY printer, now optimised for seamless multicolour printing with the Creality Filament System (CFS). Designed for serious makers, engineers, and small businesses in South Africa, the K1 Max 2025 delivers blazing-fast 600mm/s print speeds across a generous 300×300×300mm build volume.
Why Choose the Creality K1 Max 2025?
The Creality K1 Max 2025 builds on the proven K1 Max platform with key hardware upgrades for 2025. The updated mainboard includes a dedicated CFS bus for plug-and-play multicolour printing — no separate upgrade kit required. The new integrated unicorn nozzle offers quick-swap convenience, while the frosted PEI build plate provides stronger first-layer adhesion. With 20,000mm/s² acceleration, the printer reaches full 600mm/s speed in just 0.03 seconds, delivering professional-grade results up to 12× faster than standard FDM printers.
Key Upgrades Over K1 Max (2024)
- CFS-C Ready Mainboard — dedicated CFS bus port for direct multicolour printing without an upgrade kit
- Integrated Unicorn Nozzle — standard quick-swap nozzle system for fast maintenance
- Frosted PEI Build Plate — improved adhesion compared to the smooth PEI/PC plate on the 2024 model
- 20T Standard Pulleys — upgraded from the varied 32T/20T pulleys on the original
Key Features
- 600mm/s Max Print Speed — with 20,000mm/s² acceleration, reaching full speed in 0.03 seconds
- 300×300×300mm Build Volume — one of the largest enclosed Core XY print areas available
- Core XY Motion System — lightweight 190g printhead with reduced motion inertia for speed and precision
- AI LiDAR & AI Camera — automated first-layer inspection, spaghetti detection, and remote monitoring
- Hands-free Calibration — fully automatic bed levelling, vibration compensation, and flow calibration
- Max 32mm³/s Flow Rate — ceramic heater reaches 200°C in 40 seconds with dual-gear direct drive extruder
- All-Metal Hotend — titanium alloy heatbreak with hardened steel nozzle, printing up to 300°C
- Dual Cooling Fans — large printhead fan plus 18W auxiliary chamber fan for warp-free prints
- Upgraded Z-axis — precise positioning to minimise Z-banding and enhance surface texture
- Enclosed Build Chamber — maintains stable temperatures for ABS, ASA, and other heat-sensitive materials
- Smart Connectivity — Wi-Fi, USB, Creality Cloud app, and Creality OS (Klipper-based)
Technical Specifications
- Print Technology: FDM (Core XY)
- Build Volume: 300 × 300 × 300mm
- Max Print Speed: 600mm/s
- Max Acceleration: 20,000mm/s²
- Max Flow Rate: 32mm³/s
- Nozzle Temperature: Up to 300°C
- Heatbed Temperature: Up to 100°C
- Build Plate: Frosted PEI (high adhesion)
- Frame: Unibody die-cast and CNC-machined
- Extruder: Dual-gear direct drive
- Filament Diameter: 1.75mm
- Supported Filaments: PLA, PETG, ABS, ASA, PLA-CF, and more
- Levelling: Automatic with AI LiDAR
- Display: 4.3″ colour touchscreen
- Connectivity: Wi-Fi, USB, LAN
- Slicer Software: Creality Print
- Printer Dimensions: 435 × 462 × 526mm
- Printer Weight: ~18kg
- Assembly: 95% pre-assembled
K1 Series Comparison
| Feature | K1C | K1 Max 2025 | K1 Max | K1 SE |
|---|---|---|---|---|
| Build Volume | 220×220×250 mm | 300×300×300 mm | 300×300×300 mm | 220×220×250 mm |
| Max Print Speed | 600 mm/s | 600 mm/s | 600 mm/s | 600 mm/s |
| Enclosure | Fully enclosed | Fully enclosed | Fully enclosed | Open frame |
| AI Camera | Yes | Yes | Yes | No |
| Carbon Fibre Nozzle | Yes (tri-metal) | No (standard) | No (standard) | No (standard) |
| LiDAR Bed Levelling | No | Yes | No | No |
| CFS-C Compatible | Via upgrade kit | Native | No | No |
| Status | Current | Current | Legacy | Discontinued |
